EOAT mounting brackets & clamp legs
JMBP / JMBT1 / JMBT4 Swing and cross blocks
JMBP / JMBT1 / JMBT4 swing and cross blocks. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Swing block dimensions
| Model | A (mm) | B | C (mm) | D (mm) | E (mm) | Weight |
|---|---|---|---|---|---|---|
| JMBT4-G1820 | Ø20 | G1/8 | 19 | 14 | 28 | 11 g |
Dimensions and mounting specifications
| Model | A | B | C | D | E | F | G | H | Weight |
|---|---|---|---|---|---|---|---|---|---|
| JMBT1-M1412 | M14*1 | Ø12 | 16 | 16 | 45 | 8 | 25 | 20 | 16g |
Dimensions in mm unless otherwise stated. ✓ indicates compatibility.
Dimensions and mounting specifications
| Model | A | B | C | D | E | F | Weight |
|---|---|---|---|---|---|---|---|
| JMBP-0808 | Ø8 | Ø8 | 12 | 12 | 35 | 10 | 11g |
| JMBP-0812 | Ø8 | Ø12 | 16 | 16 | 43 | 12 | 23g |
| JMBP-1212 | Ø12 | Ø12 | 16 | 16 | 44 | 14 | 21g |
| JMBP-2012 | Ø20 | Ø12 | 25 | 25 | 60 | 18 | 75g |
| JMBP-2020 | Ø20 | Ø20 | 25 | 25 | 66 | 24 | 71g |
Dimensions in mm unless otherwise stated. ✓ indicates compatibility.
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

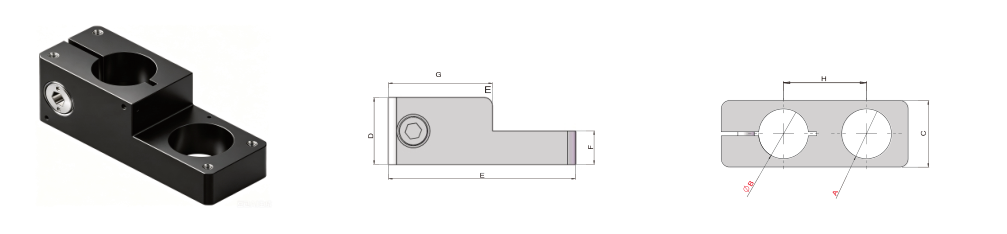

Enlarge drawing ↗JMBP / JMBT1 / JMBT4 · Dimensions

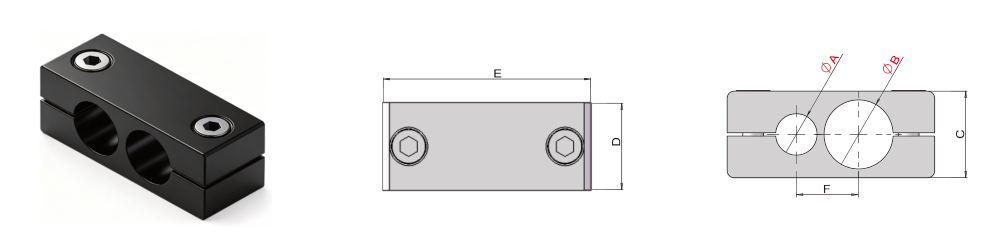

Enlarge drawing ↗JMBP / JMBT1 / JMBT4 · Dimensions
Enlarge drawing ↗JMBP / JMBT1 / JMBT4 · Dimensions
Application details for your quotation
Select the profile connection and shaft diameter together. Compare the dimension letters, mounting hardware and component weight for the proposed frame arrangement.
Read the selection guide ↗
