Pneumatic air nippers & sprue cutters
AML / AMR / AA / AE Plastic cutting blades
AML / AMR / AA / AE plastic cutting blades. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
AML / AMR — dimensions
| Model | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | L (mm) | Weight (g) | Material | Compatible bodies |
|---|---|---|---|---|---|---|---|---|---|---|
| N20AML1498 | 55 | 55 | 8 | 26 | 9.5 | 41 | 115 | 270 | Special alloy steel | GT-NS20 / NR20 / N20 / NB20 |
| N20AMR1499 | 55 | 55 | 8 | 26 | 9.5 | 41 | 115 | 270 | Special alloy steel | GT-NS20 / NR20 / N20 / NB20 |
| N30AML1435 | 55 | 68 | 10 | 35 | 13 | 39 | 139 | 520 | Special alloy steel | GT-NS30 / NR30 / N30 / NB30 |
| N30AMR1395 | 55 | 68 | 10 | 35 | 13 | 39 | 139 | 520 | Special alloy steel | GT-NS30 / NR30 / N30 / NB30 |
R profile — dimensions
| Model | a (mm) | b (mm) | c(°) | d (mm) | e (mm) | L (mm) | Weight (g) | Material | Compatible bodies |
|---|---|---|---|---|---|---|---|---|---|
| N10LAB152 | 61 | 12 | 15 | 35 | 10 | 115 | 165 | Special alloy steel | GT-NS10L / NR10L |
| N20AA27 | 45 | 12 | 23 | 25 | 12 | 105 | 145 | Special alloy steel | GT-NS20 / NR20 / N20 / NB20 |
| N20AA239 | 52.3 | 12 | 40 | 27 | 14 | 112.3 | 195 | Special alloy steel | GT-NS20 / NR20 / N20 / NB20 |
| N20AB360 | 61 | 12 | 15 | 35 | 16 | 121 | 185 | Special alloy steel | GT-NS20 / NR20 / N20 / NB20 |
| N30AA114 | 76.3 | 17 | 30 | 50 | 20 | 160.3 | 385 | Special alloy steel | GT-NS30 / NR30 / N30 / NB30 |
Angled AE — dimensions
| Model | a (mm) | b (mm) | c(°) | d (mm) | e (mm) | L (mm) | Weight (g) | Material | Compatible bodies |
|---|---|---|---|---|---|---|---|---|---|
| N20AE19 | 50 | 12 | 45 | 13 | 13 | 110 | 200 | Special alloy steel | GT-NS20 / NR20 / N20 / NB20 |
| N30AE53 | 65 | 17 | 65 | 18.5 | 16 | 149 | 440 | Special alloy steel | GT-NS30 / NR30 / N30 / NB30 |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

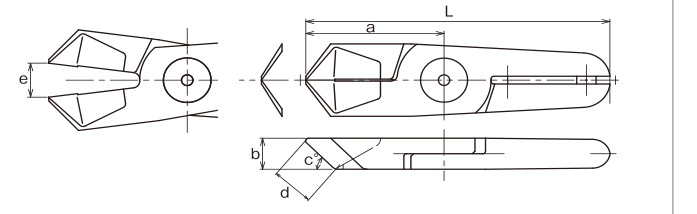

Enlarge drawing ↗AML / AMR / AA / AE · Dimensions

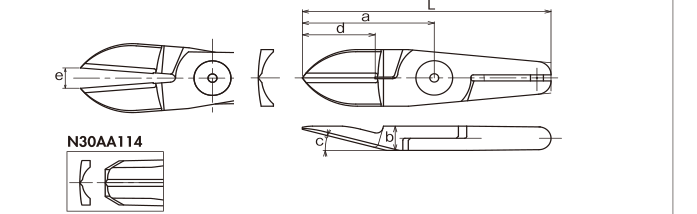

Enlarge drawing ↗AML / AMR / AA / AE · Dimensions
Enlarge drawing ↗AML / AMR / AA / AE · Dimensions
Application details for your quotation
Specify the material, gate cross-section, cutting position and temperature requirement when requesting a quotation. Confirm the blade and heating configuration for the application.
Read the selection guide ↗
