Pneumatic air nippers & sprue cutters
GT-N80H-63 Thrust cut nippers
Pneumatic cutting for automated trimming setups.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Pneumatic parameters
| Parameter | Value |
|---|---|
| Model | GT-N80H-63 |
| Medium | Filtered compressed air, lubricated or non-lubricated |
| Pressure range | 2–6 bar |
| Temperature range | 5–60 °C |
| Piston bore | Ø40 mm |
| Closing torque at 6 bar | 1470 N·cm |
| Air consumption per cycle | 75 cm³ |
| Weight | 1570 g |
Blades, heating & control components
| Component / parameter | Model | Specification |
|---|---|---|
| Upper blade | JN54-T | — |
| Lower blade | JN54-D | — |
| Insulation pads | JL54-5 | — |
| Thermocouple | — | 220 V / 100 W; cable length 1.5 m |
| Heating pipe | D6-L55 | 220 V / 100 W; cable length 1.5 m |
| Temperature range | — | 0–200 °C |
| Power | — | 100 W |
| Temperature controller | JNT-01 | — |
| Operating voltage | — | 100–240 V AC; 50/60 Hz |
Confirm the heater and thermocouple configuration before ordering.
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

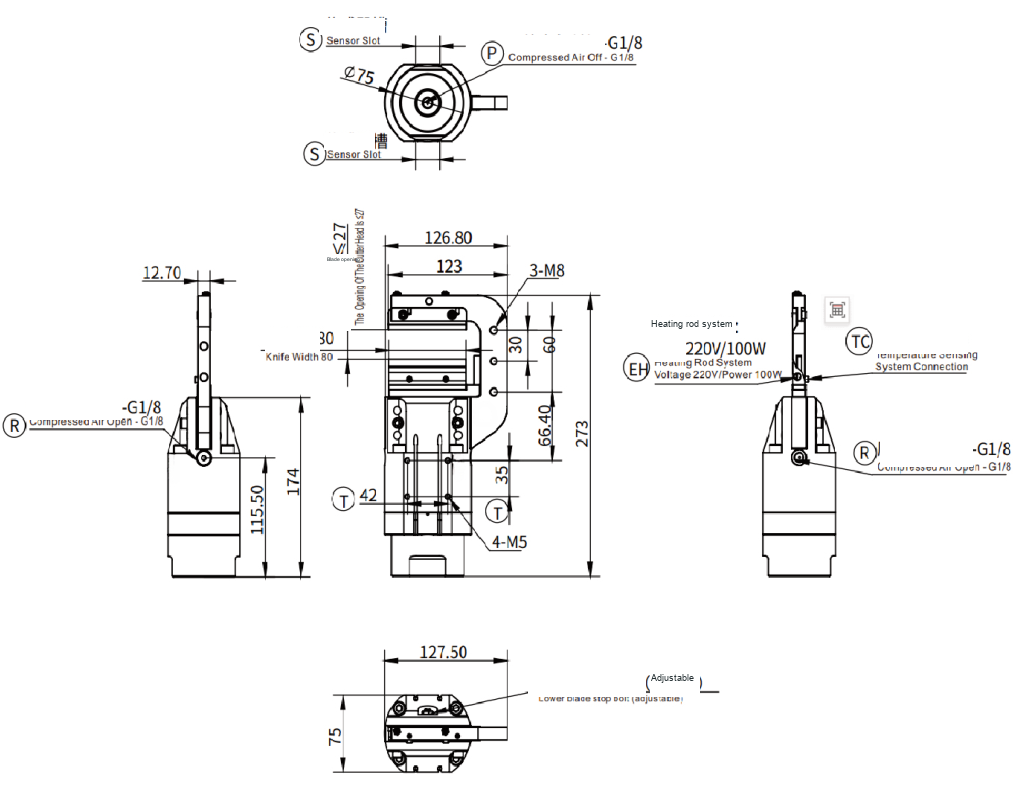

Enlarge drawing ↗Heated nipper dimensions and connections
Confirm the heated-nipper model before using this drawing for fabrication.
Application details for your quotation
Specify the material, gate cross-section, cutting position and temperature requirement when requesting a quotation. Confirm the blade and heating configuration for the application.
