Pneumatic air nippers & sprue cutters
GT-NKH10 / GT-NTH Heated nippers and blades
GT-NKH10 / GT-NTH heated nippers and blades. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Heated nipper performance
| Model | Acrylic capacity (mm) | Maximum blade temperature (°C) | Cycle (s/cut) | Air per stroke (cm³) | Stroke (mm) | Weight (g) | Pressure (MPa) |
|---|---|---|---|---|---|---|---|
| GT-NKH10 | 7 × 1.5 | 200 | 4–5 | 73 | 12 | 715 | 0.5–0.6 |
| GT-NTH05 | Ø2.5 | 200 | 4–5 | 47 | 0–3 | 325 | 0.4–0.5 |
| GT-NTH10 | Ø3.5 | 200 | 4–5 | 82 | 0–3 | 515 | 0.4–0.5 |
Heater: 80 W / 120 V, 300 mm cable. Type K thermocouple: 1,000 mm cable. Optional DTC-001 temperature controller.
NKH10 blade specifications
| Model | Opening (mm) | Effective cutting length (mm) | Weight (g) |
|---|---|---|---|
| NKH10AJ / NKH10RAJ | 12 | 10 | 137 |

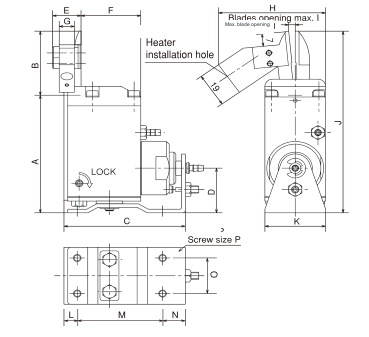

NTH body dimensions (mm)
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GT-NTH05 | 66.1 | 36 | 64 | 25.1 | 15 | 31.5 | 8 | 56.5 | 3.5 | 102.1 | 32 | 7 | 45 | 12 | 20 | M4 |
| GT-NTH10 | 83 | 47 | 73 | 29 | 16.2 | 37.5 | 8 | 63 | 4.5 | 130 | 38 | 8 | 53 | 12 | 24 | M4 |
NTH blade dimensions and performance
| Model | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | L (mm) | Weight (g) | Acrylic Ø (mm) | Maximum setting (°C) | Compatible bodies |
|---|---|---|---|---|---|---|---|---|---|---|
| NTH05AJ | 36 | 7 | 3.5 | 15 | 3.5 | 72 | 40 | 2.5 | 200 | GT-NT05(-4) / GT-NT05R(-4) |
| NTH10AJ | 47 | 9 | 4.7 | 17.5 | 4.5 | 94 | 88 | 3.5 | 300 | GT-NT10(-6) / GT-NT10R(-6) |
Special alloy steel. Blade weights exclude heater and sensor.
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.
Enlarge drawing ↗GT-NKH10 / GT-NTH · Dimensions
Enlarge drawing ↗GT-NKH10 / GT-NTH · Dimensions

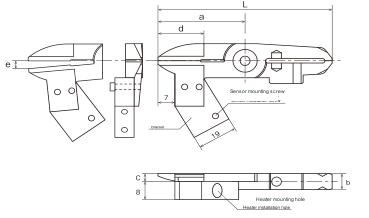

Enlarge drawing ↗GT-NKH10 / GT-NTH · Heated blade dimensions
Application details for your quotation
Specify the material, gate cross-section, cutting position and temperature requirement when requesting a quotation. Confirm the blade and heating configuration for the application.
Read the selection guide ↗
