GT-NS / GT-N Air nippers
GT-NS / GT-N air nippers. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Square-body nipper performance
| Model | Soft plastic Ø (mm) | Hard plastic Ø (mm) | Copper Ø (mm) | Steel Ø (mm) | Air per stroke (cm³) | Pressure (MPa) | Weight (g) |
|---|---|---|---|---|---|---|---|
| GT-NS3 | 2.0 | — | 1.0 | 0.5 | 45 | 0.4–0.5 | 95 |
| GT-NS5 | 2.0 | — | 1.0 | 0.5 | 64 | 0.4–0.5 | 135 |
| GT-NS7 | 3.0 | 2.0 | 1.6 | 1.0 | 116 | 0.4–0.5 | 215 |
| GT-NS10L | 4.0 | 2.6 | 1.8 | 1.2 | 116 | 0.4–0.6 | 215 |
| GT-NS20 | 7.0 | 5.0 | 2.6 | 2.0 | 230 | 0.5–0.6 | 370 |
| GT-NS30 | 10.0 | 6.5 | 3.3 | 2.8 | 584 | 0.5–0.6 | 685 |
| GT-NS20H-1 | 7.0 | 5.0 | 2.6 | 2.0 | 230 | 0.5–0.6 | 455 |
Rc1/8 coupling; air hose ID 5 mm. Blade sold separately.
Square-body dimensions (mm)
| Model | A | B | C | D | E | F | G | H | I | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GT-NS3 | 110 | 23 | 40 | 19 | M3 depth 8 | 17 | M3 depth 3.5 | 19 | 24 | 7 | 23 | 7 |
| GT-NS5 | 94 | 30 | 30 | 24 | M4 depth 10 | 20 | M3 depth 5 | 14 | 19 | 7 | 23 | 7 |
| GT-NS7 | 113 | 36 | 30 | 28 | M4 depth 10 | 24 | M4 depth 5.5 | 18 | 23 | 9 | 23 | 7 |
| GT-NS10L | 113 | 36 | 30 | 28 | M4 depth 10 | 24 | M4 depth 5.5 | 18 | 23 | 12 | 26 | 7 |
| GT-NS20 | 129 | 45 | 40 | 36 | M5 depth 12 | 30 | M4 depth 7 | 19 | 24 | 12 | 26 | 9 |
| GT-NS30 | 170 | 56 | 60 | 46 | M6 depth 12 | 40 | M5 depth 10 | 20 | 30 | 17 | 36 | 15 |
| GT-NS20H-1 | 129 | 45 | 40 | 36 | M5 depth 12 | 30 | M4 depth 7 | 19 | 24 | 12 | 26 | 9 |
Handheld nipper specifications
| Model | Soft plastic Ø (mm) | Hard plastic Ø (mm) | Copper Ø (mm) | Steel Ø (mm) | A (mm) | ØB (mm) | C (mm) | D (mm) | Air per stroke (cm³) | Pressure (MPa) | Weight (g) | Body port |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GT-N3 | 2.0 | — | 1.0 | 0.5 | 112 | 23 | 7 | 14 | 45 | 0.4–0.5 | 95 | Rc1/8 |
| GT-N5 | 2.0 | — | 1.0 | 0.5 | 103 | 30 | 7 | 14 | 64 | 0.4–0.5 | 135 | Rc1/8 |
| GT-N7 | 3.0 | 2.0 | 1.6 | 1.0 | 123 | 34 | 9 | 17 | 116 | 0.4–0.5 | 180 | Rc1/4 |
| GT-N10 | 4.0 | 2.6 | 1.8 | 1.2 | 132 | 34 | 9 | 17 | 116 | 0.4–0.5 | 185 | Rc1/4 |
| GT-N12 | 4.5 | 4.0 | 2.3 | 1.7 | 142 | 36 | 12 | 20 | 116 | 0.5–0.6 | 210 | Rc1/4 |
| GT-N20 | 7.0 | 5.0 | 2.6 | 2.0 | 156 | 45 | 12 | 23 | 230 | 0.5–0.6 | 375 | Rc1/4 |
| GT-N30 | 10.0 | 6.5 | 3.3 | 2.8 | 193 | 56 | 17 | 30 | 584 | 0.5–0.6 | 625 | Rc1/4 |
| GT-N50 | — | — | 5.5 | 4.5 | 237 | 75 | 25.2 | 43 | 1170 | 0.5–0.6 | 1220 | Rc1/4 |
Hose coupling R1/4; hose ID 5 mm. Dimensions and weights exclude accessories; length excludes hanger.
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

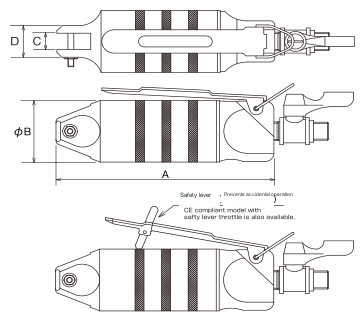

Enlarge drawing ↗GT-NS / GT-N · Dimensions
Enlarge drawing ↗GT-NS / GT-N · Dimensions
Application details for your quotation
Specify the material, gate cross-section, cutting position and temperature requirement when requesting a quotation. Confirm the blade and heating configuration for the application.
Read the selection guide ↗
