Pneumatic air nippers & sprue cutters
NY-AD / AH / BJ Horizontal nipper blades
NY-AD / AH / BJ horizontal nipper blades. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
AD lift blades
| Model | a (mm) | b (mm) | f×g (mm) | d1 (mm) | d2 (mm) | e (mm) | L (mm) | Weight (g) | Material | Compatible bodies |
|---|---|---|---|---|---|---|---|---|---|---|
| NY10AD | 26.5 | 7.2 | 6×13 | 2.5 | 4.2 | 6 | 59.5 | 31 | Special alloy steel | GT-NY10(-4) / NY10G(-4) / NF10 / NY10S |
| NY15AD | 30 | 8.2 | 7×14 | 3 | 4.7 | 8 | 68 | 45 | Special alloy steel | GT-NY15(-4) / NF15 |
| NY25AD | 35 | 10 | 8×17 | 4 | 6 | 9 | 81 | 75 | Special alloy steel | GT-NY25(-6) / NY25S |
AH / RAH crank blades
| Model | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | L (mm) | Weight (g) | Material | Compatible bodies |
|---|---|---|---|---|---|---|---|---|---|
| NY05AH | 31 | 19 | 5 | 10.5 | 5.5 | 62 | 37 | Special alloy steel | GT-NY05(-4) / NF05 |
| NY05RAH | 30 | 12 | 5 | 10.5 | 5 | 61 | 31 | Special alloy steel | GT-NY05R(-4) / NF05 |
| NY10AH | 33 | 20 | 5 | 12 | 8 | 66 | 43 | Special alloy steel | GT-NY10(-4) / NY10G(-4) / NF10 / NY10S |
| NY15AH | 38 | 21.5 | 5.5 | 13 | 11 | 76 | 63 | Special alloy steel | GT-NY15(-4) / NF15 |
| NY15RAH | 35 | 13.2 | 5.5 | 13 | 9 | 73 | 52 | Special alloy steel | GT-NY15R(-4) / NF15 |
| NY25AH | 46 | 24 | 6 | 17 | 13 | 92 | 110 | Special alloy steel | GT-NY25(-6) / NY25S |
| NY25RAH | 42 | 16 | 6 | 16 | 12 | 88 | 89 | Special alloy steel | GT-NY25R(-6) / NY25S |
BJ / RBJ straight metal blades
| Model | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | L (mm) | Weight (g) | Material | Compatible bodies |
|---|---|---|---|---|---|---|---|---|---|
| NY05BJ | 22 | 7 | 5 | 10.5 | 4 | 53 | 22 | Special alloy steel | GT-NY05(-4) / NF05 |
| NY05RBJ | 22 | 7 | 5 | 10.5 | 4 | 53 | 22 | Special alloy steel | GT-NY05R(-4) / NF05 |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

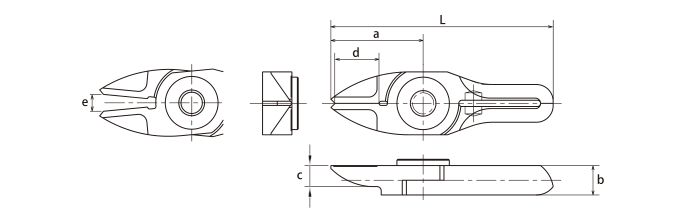

Enlarge drawing ↗NY-AD / AH / BJ · Dimensions

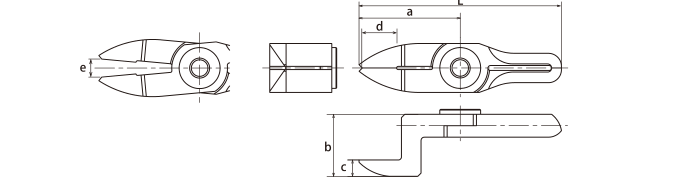

Enlarge drawing ↗NY-AD / AH / BJ · Dimensions
Enlarge drawing ↗NY-AD / AH / BJ · Dimensions
Application details for your quotation
Specify the material, gate cross-section, cutting position and temperature requirement when requesting a quotation. Confirm the blade and heating configuration for the application.
Read the selection guide ↗
