Pneumatic air nippers & sprue cutters
NY-D / JNT Sliding air nipper bodies
NY-D / JNT sliding air nipper bodies. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
NY slide nipper specifications
| Model | Soft plastic Ø (mm) | Hard plastic Ø (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I | Air per stroke (cm³) | Weight (g) | Slide travel (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NY10-P | 3.5 | 2.3 | 12.4 | 87.8 | 43.8 | 30 | 20 | 28 | 53.2 | 4 | M4 | 48 | 155 | 0–3 |
| NY15-P | 4.0 | 2.6 | 13.2 | 96.5 | 45.5 | 35 | 25 | 33 | 58 | 6 | M4 | 48 | 155 | 0–3 |
Pull type; pressure 0.4–0.5 MPa; tube ID 2.5 / OD 4 mm. AJ blade dimensions.
Slide brackets
| Model | Action | Adjustable stroke | Envelope W × D × H |
|---|---|---|---|
| JNT-2010TM-D | Pull by compressed air | 0–10 mm | 84 × 104.5 × 138 mm |
| JNT-2010SM-D | Push by compressed air | 0–10 mm | 84 × 104.5 × 138 mm |
Heating cutter dimensions
| Parameter | Value |
|---|---|
| Overall length | 208 mm |
| Body length | 188 mm |
| Mounting stem | Ø20 mm |
| Blade length | 60 mm |
| Head width | 45 mm |
| Head thickness | 25.4 mm |
| Angular markings | 45° / 90° |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

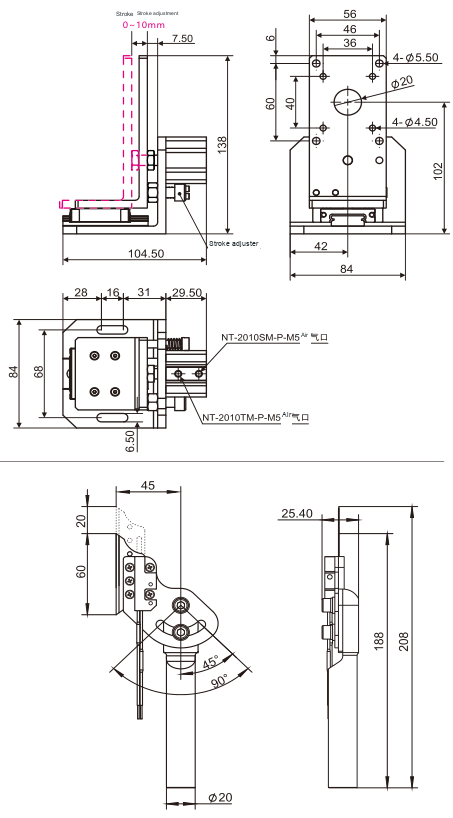

Enlarge drawing ↗NY-D / JNT · Dimensions
Enlarge drawing ↗NY-D / JNT · Dimensions
Application details for your quotation
Specify the material, gate cross-section, cutting position and temperature requirement when requesting a quotation. Confirm the blade and heating configuration for the application.
