Sprue grippers for injection molding
JK12 Sprue grippers
JK12 sprue grippers. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Gripper model specifications
| Model | Sensor | Gripping force | Weight |
|---|---|---|---|
| JK12B-12 | — | 28N | 44g |
| JK12B-12-C | — | 28N | 44g |
| JK12B-12-CP | PNP | 28N | 70g |
| JK12B-12-CN | NPN | 28N | 70g |
| JK12A-12 | — | 28N | 44g |
| JK12A-12-C | — | 28N | 44g |
| JK12A-12-CP | PNP | 28N | 70g |
| JK12A-12-CN | NPN | 28N | 70g |
| JK12M-12 | — | 28N | 66.2g |
| JK12M-12-CP | PNP | 28N | 82.5g |
| JK12M-12-CN | NPN | 28N | 82.5g |
Mounting dimensions — L
| Model | ØA (mm) | Gripping force | Weight |
|---|---|---|---|
| JK12L-12 | 12 | 28 N | 50 g |
Mounting dimensions — N
| Model | ØA (mm) | Gripping force | Weight |
|---|---|---|---|
| JK12N-12 | 12 | 28 N | 42 g |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

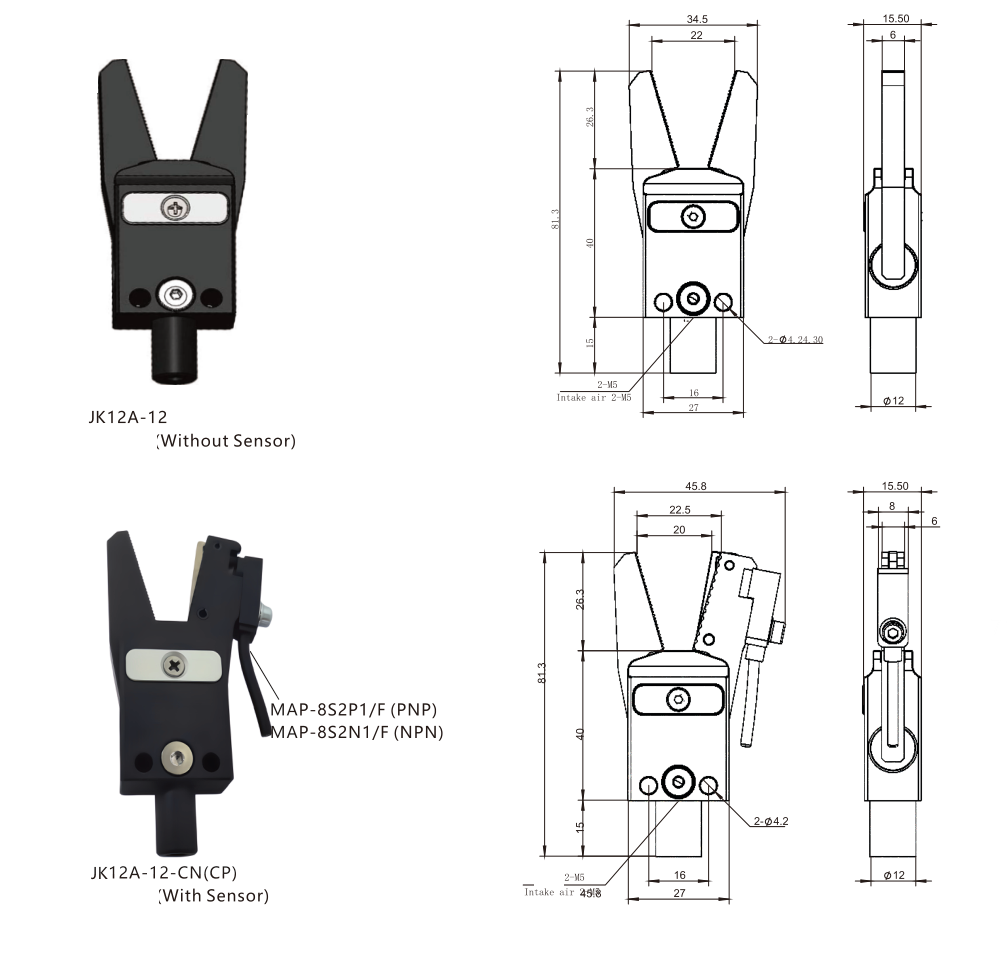

Enlarge drawing ↗JK12 · Dimensions

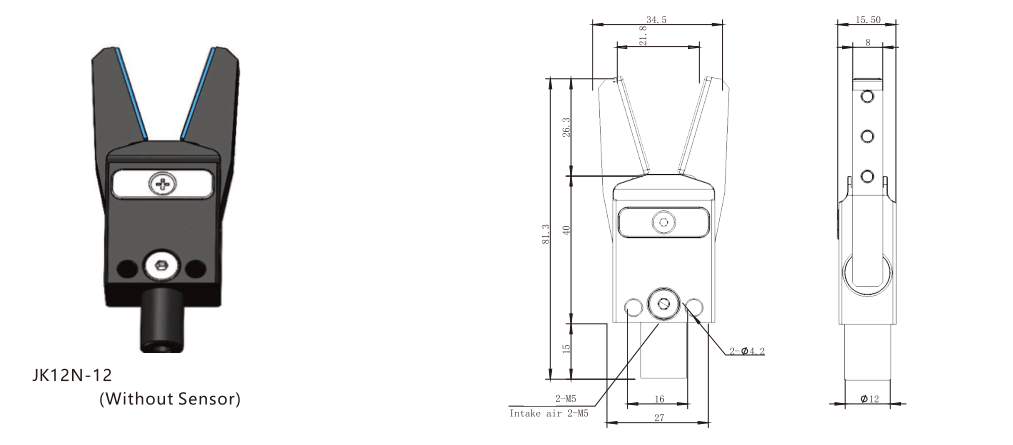

Enlarge drawing ↗JK12 · Dimensions

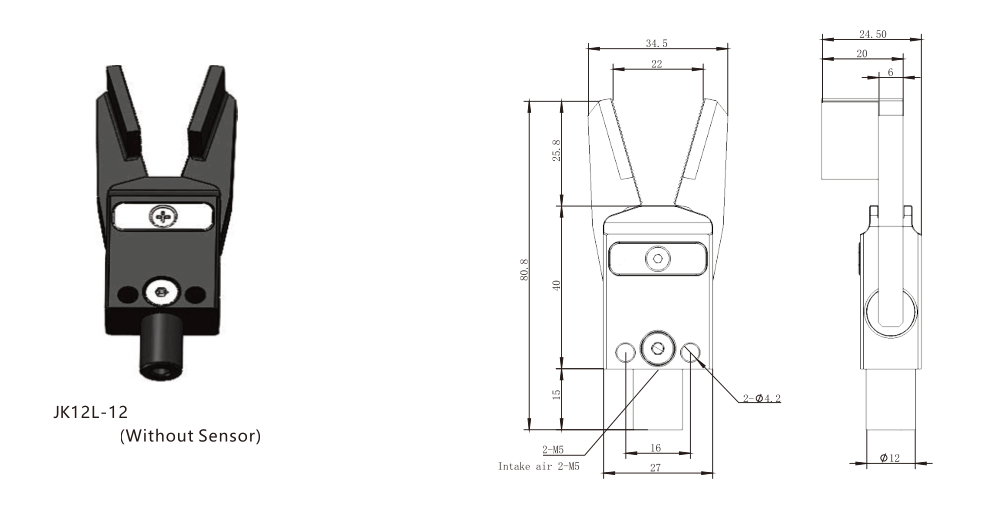

Enlarge drawing ↗JK12 · Dimensions

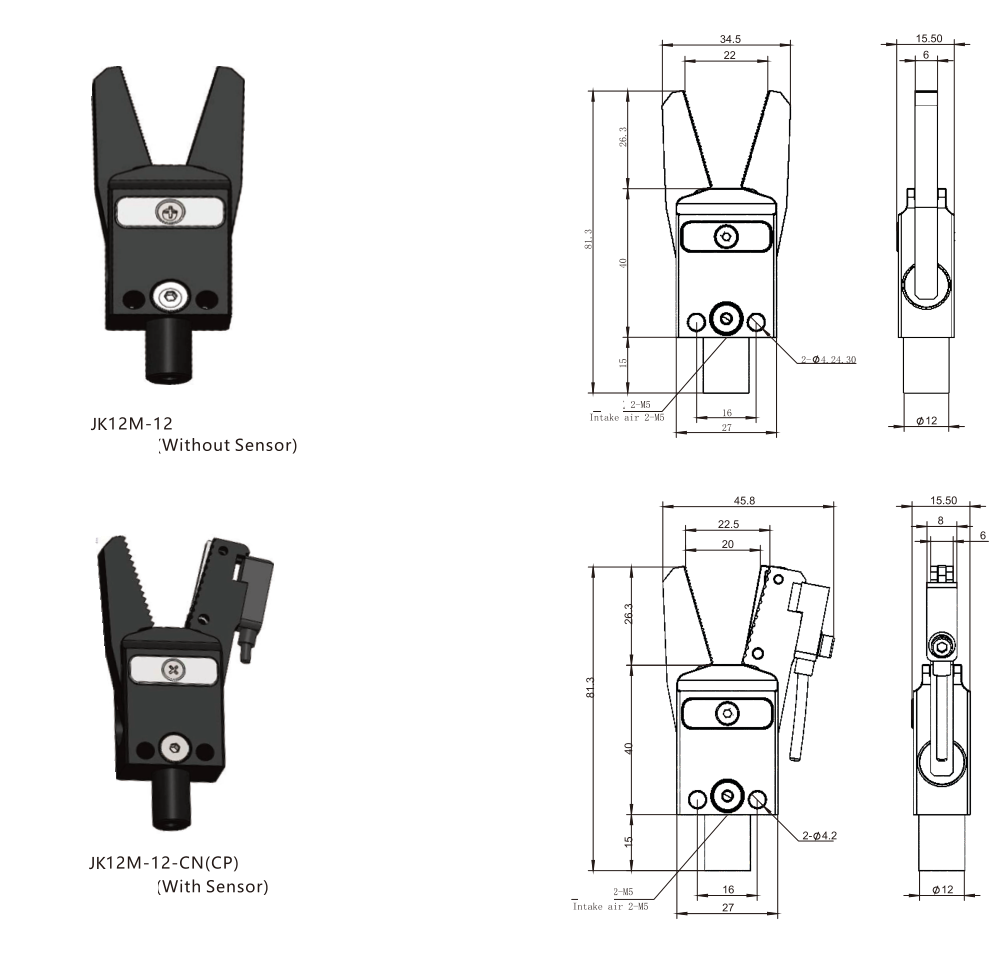

Enlarge drawing ↗JK12 · Dimensions
Enlarge drawing ↗JK12 · Alternative configuration dimensions
Application details for your quotation
Confirm the gate geometry, available gripping space and sensor requirements. Compare the stated operating conditions as well as the nominal gripping force.
Read the selection guide ↗
