Sprue grippers for injection molding
JKA20 SERIES Sprue grippers
Gripping components for molded-part handling.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Gripper variants
| Model | Sensor | Gripping force (N) | Weight (g) |
|---|---|---|---|
| JKA20A | — | 80 | 110 |
| JKA20A-CP | PNP | 80 | 115 |
| JKA20A-CN | NPN | 80 | 115 |
| JKA20C-CP | PNP | 80 | 135 |
| JKA20C-CN | NPN | 80 | 135 |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

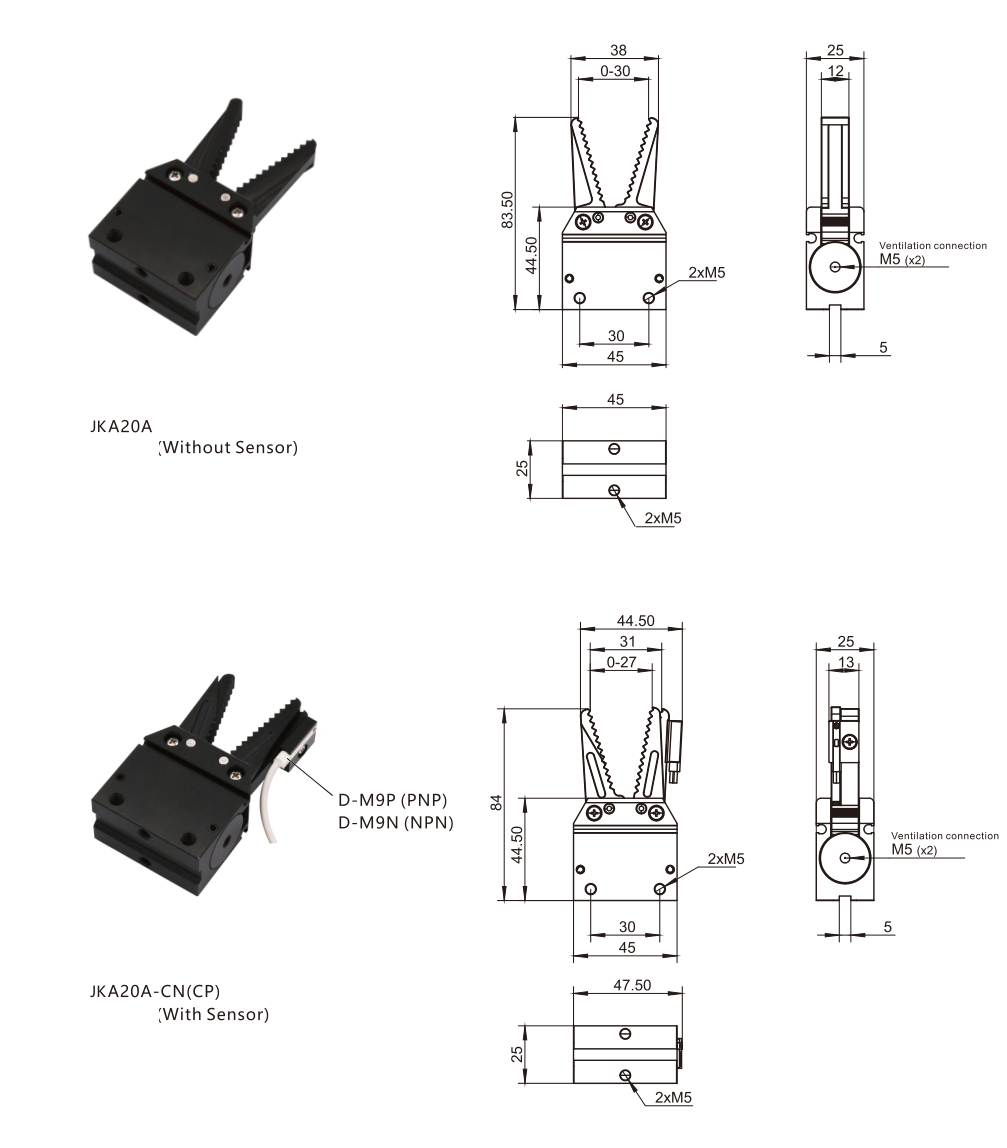

Enlarge drawing ↗Dimensions

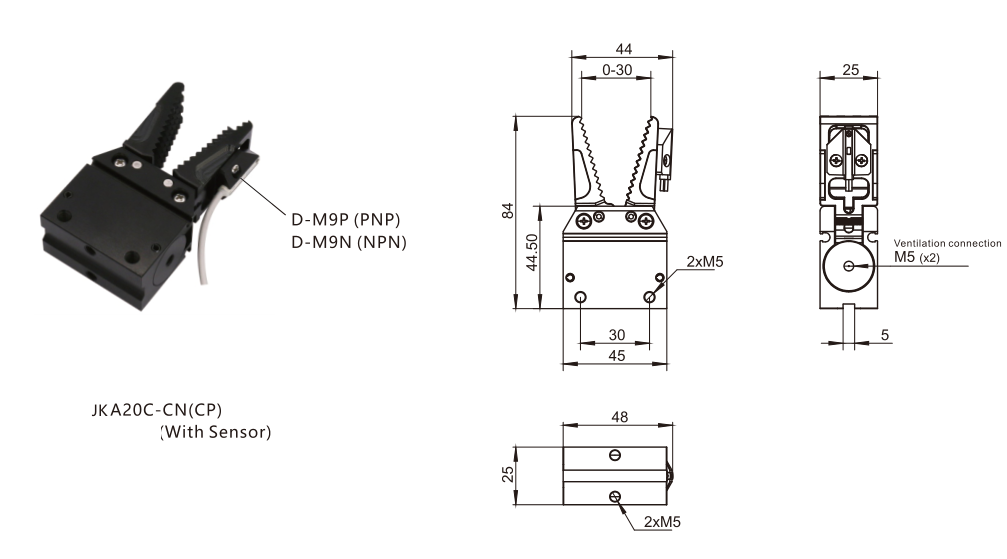

Enlarge drawing ↗Dimensions
Application details for your quotation
Confirm the gate geometry, available gripping space and sensor requirements. Compare the stated operating conditions as well as the nominal gripping force.
Read the selection guide ↗
