Sprue grippers for injection molding
JMHZ2 Parallel grippers
JMHZ2 parallel grippers. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Model specifications
| Model | Bore (mm) | Action | Pressure (MPa) | Weight |
|---|---|---|---|---|
| JMHZ2-10S | 10 | Single acting (normally open) | 0.35–0.7 | 53 g |
| JMHZ2-16S | 16 | Single acting (normally open) | 0.25–0.7 | 123 g |
| JMHZ2-20S | 20 | Single acting (normally open) | 0.25–0.7 | 227 g |
| JMHZ2-25S | 25 | Single acting (normally open) | 0.25–0.7 | 309 g |
| JMHZ2-32S | 32 | Single acting (normally open) | 0.25–0.7 | 415 g |
| JMHZ2-40S | 40 | Single acting (normally open) | 0.25–0.7 | 543 g |
| JMHZ2-10D | 10 | Double acting | 0.2–0.7 | 52.5 g |
| JMHZ2-16D | 16 | Double acting | 0.1–0.7 | 120 g |
| JMHZ2-20D | 20 | Double acting | 0.1–0.7 | 225 g |
| JMHZ2-25D | 25 | Double acting | 0.1–0.7 | 314 g |
| JMHZ2-32D | 32 | Double acting | 0.1–0.7 | 410 g |
| JMHZ2-40D | 40 | Double acting | 0.1–0.7 | 537 g |
Operating conditions
| Parameter | Value |
|---|---|
| Working fluid | Air |
| Temperature range | −10 to +60 °C |
| Repeatability | ±0.01 mm (10–25); ±0.02 mm (32–40) |
| Maximum frequency | 180 cycles/min (10–25); 60 cycles/min (32–40) |
| Optional sensor | Contactless magnetic switch |
| Air connection | M3×0.5 (bore 10); M5×0.8 (other bores) |
Gripping force and stroke
| Bore (mm) | Double acting, external (N) | Double acting, internal (N) | Single acting, external (N) | Total opening/closing stroke (mm) |
|---|---|---|---|---|
| 10 | 11 | 17 | 7.1 | 4 |
| 16 | 34 | 45 | 27 | 6 |
| 20 | 42 | 66 | 33 | 10 |
| 25 | 65 | 104 | 45 | 14 |
| 32 | 158 | 193 | 131 | 22 |
| 40 | 254 | 318 | 217 | 30 |
Dimensions A–N (mm)
| Bore (mm) | A | B | C | D | E | F | G | H | I | J | K | K1 | K2 | K3 | ØL | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 6 | 23 | 12 | 37.8 | 57 | 29 | 15.2 (+2.2/0) | 11.2 (0/−0.7) | 4 (0/−0.1) | 16 | M3×0.5 | 6 | 5.5 | 6 | 2.6 | 27 | Ø11 H9 depth 2 |
| 16 | 7.5 | 24.5 | 15 | 42.5 | 67.3 | 38 | 20.9 (+2.2/−0.2) | 14.9 (0/−0.7) | 5 (0/−0.1) | 24 | M4×0.7 | 4.5 | 8 | 8 | 3.4 | 30 | Ø17 H9 depth 2 |
| 20 | 9.5 | 29 | 20 | 52.8 | 84.8 | 50 | 26.3 (+2.2/−0.2) | 16.3 (0/−0.7) | 8 (0/−0.1) | 30 | M5×0.8 | 8 | 10 | 10 | 4.3 | 35 | Ø21 H9 depth 3 |
| 25 | 11 | 30 | 25 | 63.6 | 102.7 | 63 | 33.3 (+2.5/−0.2) | 19.3 (0/−0.8) | 10 (0/−0.1) | 36 | M6×1 | 10 | 12 | 12 | 5.1 | 36.5 | Ø26 H9 depth 3.5 |
| 32 | 12 | 40(49) | 29 | 67(76) | 113(122) | 97 | 48 (+2.5/0) | 26 (0/−0.5) | 12 (0/−0.1) | 46 | M6×1 | 10 | 13 | 13 | 5.1 | 48(57) | Ø34 H9 depth 4 |
| 40 | 15 | 49(62) | 36 | 83(96) | 139(152) | 119 | 60 (+2.7/0) | 30 (0/−0.5) | 14 (0/−0.1) | 56 | M8×1.25 | 13 | 16 | 17 | 6.6 | 58(71) | Ø42 H9 depth 4 |
Values in parentheses apply to single-acting versions. Depth is stated after the hole/thread diameter.
Dimensions O–EE (mm)
| Bore (mm) | O | P | Q | R | S | T | U | V | W | X | Y | Z | Y1 | Y2 | AA | BB | CC | DD | EE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 11.4 | M2.5×0.45 | 3 | 5.7 | M3×0.5 | 23 | 9 | 19 | 5 (0/−0.05) | 11 | Ø2 H9 depth 3 | 16.4 ±0.05 | 5.2 ±0.02 | 7.6 ±0.02 | 18 | 12 | — | — | — |
| 16 | 16 | M3×0.5 | 4 | 7 | M5×0.8 | 30.6 | 7.5 | 19 | 8 (0/−0.05) | 13 | Ø3 H9 depth 3 | 23.6 ±0.05 | 6.5 ±0.02 | 11 ±0.02 | 22 | 15 | 11.6 | 2.1 | 5.8 |
| 20 | 18.6 | M4×0.7 | 5 | 9 | M5×0.8 | 42 | 10 | 23 | 10 (0/−0.05) | 15 | Ø4 H9 depth 4 | 27.6 ±0.05 | 7.5 ±0.02 | 16.8 ±0.02 | 32 | 18 | 14 | 2.1 | 9 |
| 25 | 22 | M5×0.8 | 6 | 12 | M5×0.8 | 52 | 10.7 | 23.5 | 12 (0/−0.05) | 20 | Ø4 H9 depth 4 | 33.6 ±0.05 | 10 ±0.02 | 21.8 ±0.02 | 40 | 22 | 19 | 3.5 | 11.5 |
| 32 | 26 | M6×1 | 7 | 14 | M5×0.8 | 60 | 11 | 31(37) | 15 (0/−0.05) | 24 | Ø5 H9 depth 5 | 40 ±0.1 | 12 ±0.02 | 23 ±0.02 | 46 | 26 | 24 | 3.3 | 11.5 |
| 40 | 32 | M8×1.25 | 9 | 17 | M5×0.8 | 72 | 12 | 38(45) | 18 (0/−0.05) | 28 | Ø5 H9 depth 5 | 48 ±0.1 | 14 ±0.02 | 29 ±0.02 | 56 | 32 | 29.4 | 3.7 | 13 |
Values in parentheses apply to single-acting versions. Depth is stated after the hole/thread diameter.
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

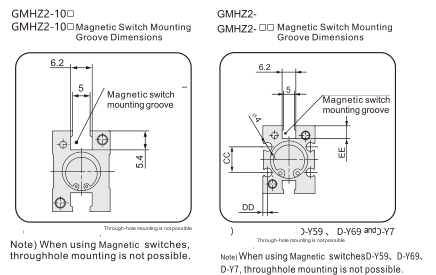

Enlarge drawing ↗JMHZ2 · Dimensions
Enlarge drawing ↗JMHZ2 · Dimensions
