Vacuum suction cups & fittings
JPG SERIES Vacuum suction cups
Contact options for vacuum-based workpiece handling.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Model code example: JPG-43-SI-55
| Code segment | Meaning |
|---|---|
| JPG | Series |
| 43 | Suction cup diameter |
| SI-55 | Rubber material code |
Rubber material options
| Material code | Material |
|---|---|
| NBR-55 | Nitrile rubber |
| SI-55 | Silicone rubber |
| HT1-60 | Traceless rubber |
ENGINEERING RESOURCES
Technical drawings

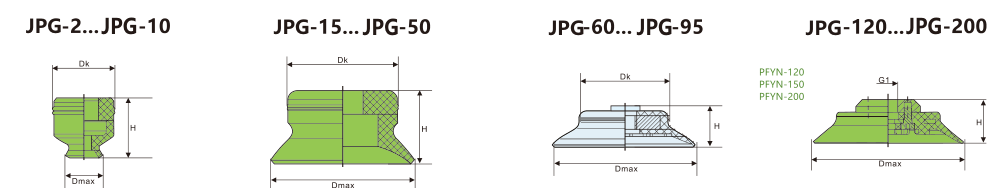

Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.
Enlarge drawing ↗Dimensions
Application details for your quotation
Describe the contact surface, curvature, material and handling orientation. Cup material and fitting thread are separate choices; confirm both with the exact model and operating conditions.
Read the selection guide ↗
