EOAT frame connectors
JFP SERIES Straight fixing plates
The structural foundation for your tooling assembly.

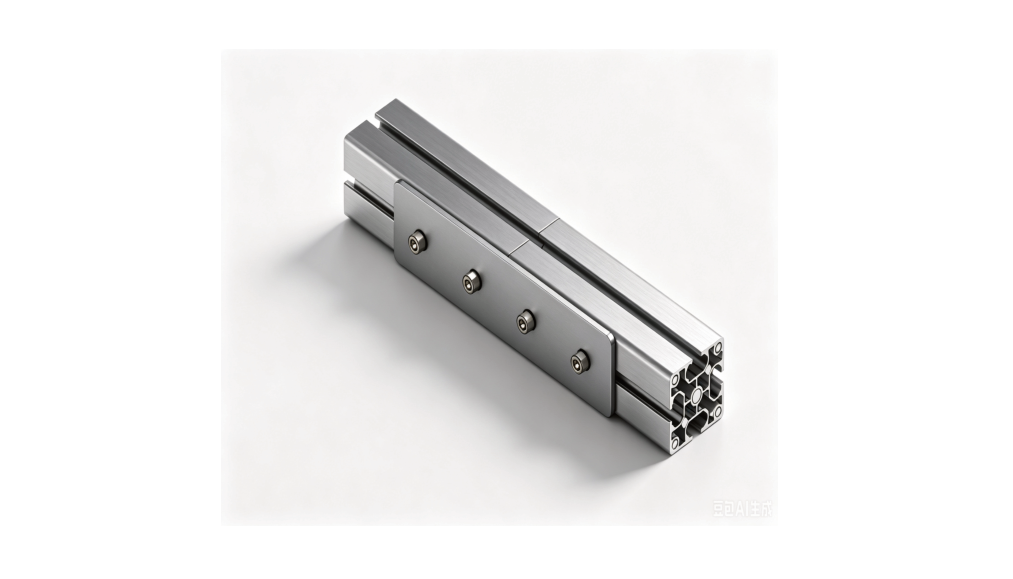

Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
Straight fixing plate dimensions
| Parameter | JFP-S2550 | JFP-S25100 | JFP-S40160 |
|---|---|---|---|
| A (mm) | 25 | 25 | 40 |
| B (mm) | 50 | 100 | 160 |
| C (mm) | 25 | 25 | 40 |
| D (mm) | — | 25 | 40 |
| E (mm) | — | 25 | 40 |
| T (mm) | 3 | 3 | 3 |
Profile compatibility
| Profile | JFP-S2550 | JFP-S25100 | JFP-S40160 |
|---|---|---|---|
| PEP2510 | ✓ | ✓ | — |
| PEP2518 | ✓ | ✓ | — |
| PEP2525 | ✓ | ✓ | — |
| PEP5025 | ✓ | ✓ | — |
| PEP4040 | — | — | ✓ |
Included screw kit & weight
| Component | JFP-S2550 | JFP-S25100 | JFP-S40160 |
|---|---|---|---|
| Screws | JTC-M5L12 × 2 | JTC-M5L12 × 4 | JTC-M5L12 × 4 |
| Single-hole shims | JTS-M5 × 2 | JTS-M5 × 4 | JTS-M5 × 4 |
| T-nuts | JTN-M5 × 2 | JTN-M5P25 × 2 | JTN-M5P40 × 2 |
| Total weight | 45 g | 95 g | 195 g |
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.

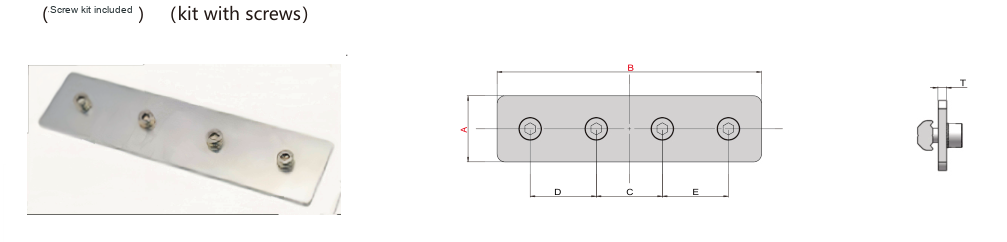

Enlarge drawing ↗Dimensions
Enlarge drawing ↗Assembly and application
Application details for your quotation
Match the profile series before choosing a plate. Check the screw and T-nut combination in the compatibility tables rather than assuming that equal outside dimensions mean equal fit.
Read the selection guide ↗
