NR-D / NS-D Air nipper bodies
NR-D / NS-D air nipper bodies. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
NR-D performance and dimensions
| Model | Soft plastic Ø (mm) | Hard plastic Ø (mm) | Copper Ø (mm) | Steel Ø (mm) | A (mm) | B (mm) | C (mm) | D | Air per stroke (cm³) | Pressure (MPa) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NR20-D | 7 | 5 | 2.6 | 2.0 | 129 | 45 | 30 | M5 depth 12 | 230 | 0.5–0.6 | 280 |
| NR30-D | 10 | 6.5 | 3.3 | 2.8 | 165 | 56 | 40 | M6 depth 12 | 584 | 0.5–0.6 | 505 |
Rc1/8 coupling; air hose ID 5 mm. Inlet position rotates 180°. Dimensions and weights exclude accessories.
NS-D performance and dimensions
| Model | Soft plastic Ø (mm) | Hard plastic Ø (mm) | Copper Ø (mm) | Steel Ø (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E | F (mm) | G | H (mm) | I (mm) | Air per stroke (cm³) | Pressure (MPa) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NS20-D | 7 | 5 | 2.6 | 2.0 | 129 | 45 | 40 | 36 | M5 depth 12 | 30 | M4 depth 7 | 19 | 24 | 230 | 0.5–0.6 | 370 |
| NS30-D | 10 | 6.5 | 3.3 | 2.8 | 170 | 56 | 60 | 46 | M6 depth 10 | 40 | M5 depth 10 | 20 | 30 | 584 | 0.5–0.6 | 685 |
Rc1/8 coupling; air hose ID 5 mm. Inlet position rotates 180°. Dimensions and weights exclude accessories.

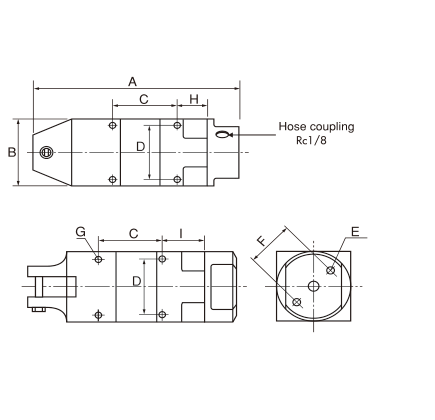

Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.
Enlarge drawing ↗NR-D / NS-D · Dimensions
Enlarge drawing ↗NR-D / NS-D · Dimensions
Application details for your quotation
Specify the material, gate cross-section, cutting position and temperature requirement when requesting a quotation. Confirm the blade and heating configuration for the application.
Read the selection guide ↗
