Sprue grippers for injection molding
JA / JB / JC / JD Finger gripper mounting options
JA / JB / JC / JD finger gripper mounting options. Compare model dimensions, technical specifications and installation drawings to configure your EOAT assembly.
Series image shown. Confirm the exact configuration against the model data below.
Price and lead time: confirmed on inquiry.
Technical specifications
JA dimensions (mm)
| Model | A | B | C | D | E | F | Weight (g) |
|---|---|---|---|---|---|---|---|
| JA-20 | Ø20 | 30 | 37 | 21 | 33 | 15 | 20 |
| JA-30 | Ø30 | 45 | 65 | 32 | 44 | 20 | 60 |

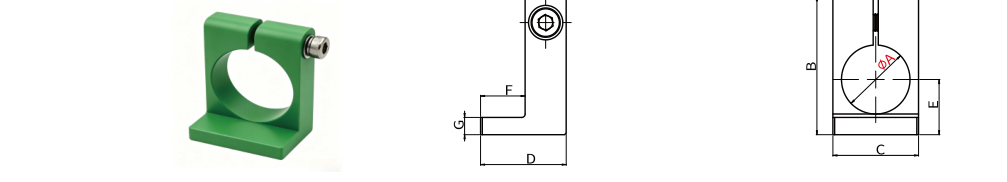

JB dimensions (mm)
| Model | A | B | C | D | E | F | G | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| JB-14 | Ø14 | 24 | 19 | 12 | 11 | 6 | 3.5 | 5 |
| JB-20 | Ø20 | 35 | 25 | 25 | 16 | 13 | 5 | 14 |
| JB-30 | Ø30 | 45 | 35 | 25 | 21 | 13 | 5.5 | 23 |

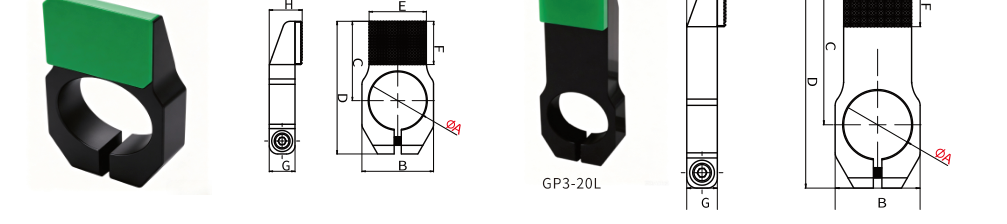

JC dimensions (mm)
| Model | A | B | C | D | E | F | H | G | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| JC-14 | Ø14 | 19 | 19 | 32 | 14 | 11 | 8.5 | 6 | 6 |
| JC-20 | Ø20 | 25 | 27.5 | 46 | 20 | 15 | 11.5 | 9 | 12 |
| JC-20L | Ø20 | 25 | 50 | 68.5 | 20 | 15 | 11.5 | 9 | 19.8 |
| JC-30 | Ø30 | 37 | 40 | 63 | 30 | 20 | 14.1 | 10 | 30 |

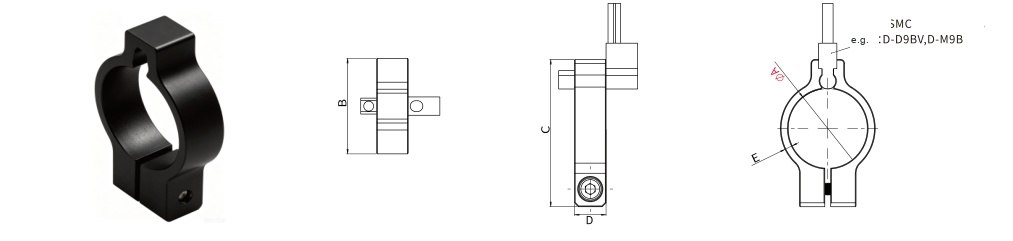

JD dimensions (mm)
| Model | A | B | C | D | E | Weight (g) |
|---|---|---|---|---|---|---|
| JD-14 | Ø14 | 18 | 30 | 8 | 2 | 14 |
| JD-20 | Ø20 | 24 | 37 | 8 | 2 | 17 |
| JD-30 | Ø30 | 34 | 47 | 8 | 2 | 25 |
For SMC magnetic switches, including D-D9BV and D-M9B.
ENGINEERING RESOURCES
Technical drawings
Inspect mounting holes, dimensions and interfaces. Open a drawing to zoom in or download the image.
Enlarge drawing ↗JA / JB / JC / JD · Dimensions
Enlarge drawing ↗JA / JB / JC / JD · Dimensions
Enlarge drawing ↗JA / JB / JC / JD · Dimensions
Enlarge drawing ↗JA / JB / JC / JD · Dimensions and installation
Application details for your quotation
Confirm the gate geometry, available gripping space and sensor requirements. Compare the stated operating conditions as well as the nominal gripping force.
Read the selection guide ↗
